Product Description

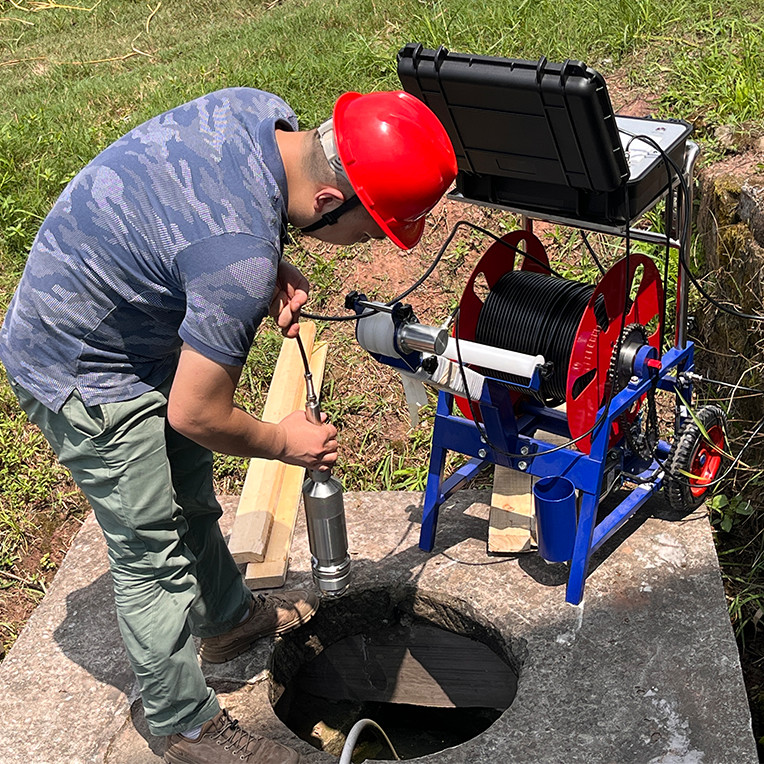

This GYGD-IV borehole inspection camera, which includes a 360°rotating waterproof camera, compass, and temperature sensor, is designed for deep well and borehole examination.The 360°rotating camera head provides a down and side view, can be manually rotated 360°, and has a field of vision of 180°. An electric winch deploys a long, high-tensile wire, which includes a control box with a multi-function control display and a 128GB hard drive. The control box also contains audio recording capabilities. Available cable lengths are 0-2000m. The winch winding speed can be regulated from 0 to 20 meters per minute. The lighting is provided by 8 LEDs for the down-view camera and 8 LEDs for the side-view camera.
Main Feature
- Rotate the camera 360 degrees,manual /automatic focus
- Waterproof 12inch screenImage definition is HD
- 0-2000m inspection depth,cable tensile strength 250kg
- Manual / Electrical winch,Wheel type winch, easy to move
- The camera monitor use the keyboard to input information and USB for record
Application Field
The borehole inspection camera is designed for deep well and borehole examination in industries such as engineering geology, hydrogeology, geotechnical engineering, mining, and petroleum geology. It can be used to detect fissures, dislocations, falling objects, blockages of filter pipe holes, the position of fluid sand, bedrock fissures, and more.
Specifications
PROBE
- 360 Degree rotary camera
- Can see down view and side view at same time
- Focus and light can be adjustable
- Centralizer to protect camera
CONTROLLER
- 12inch Screen
- Keyboard to input information
- USB record
- HD camera head and display
ELECTRIC WINCH
- Wheel type winch, easy to move
- Depth counter
- Depth range 0-2000m
- If more than 500m, will use skid type winch
Configuration
Technical Specification
| Camera |
| Camera head diameter | 75mm |
| Viewing angle | horizontal 360°, vertical 180° |
| Function | Focus/ Light |
| sensor | Sony 1/3 Inch CCD, 0.1Lux |
| Pixel | 1024*768 Pixel |
| Monitor |
| Resolution | 850TVL |
| Storage | SD Card/ U-Disk, Standard 16G, 32G Optional |
| Screen | 12- Inch 4:3 |
| Control | Keyboard to input information |
| Electrical Wheel |
| Power supply | AC 220V 50HZ (DC12/24 Optional) |
| Inspect depth | 500m |
| Electric wire winder | Manual/Automatic |
Detailed Images
Packing&Delivery
Safe and efficient packaging and transportation services. We prioritize item safety and use high-quality materials to minimize damage. Trust us for reliable and timely delivery, domestically or internationally. Your items are in good hands with our comprehensive solutions.
Company Profile
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical instruments such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic instrument, magnetic instrument, borehole camera, borehole logger and drilling equipment ( core drill rig, water well drill rig,engineering drill rig, anchor drilling rig and so on. Also we supply the surveying equipment such as GPS, Total Station, Echo sounder and so on.
FAQ
1. What is your company's primary focus?
Our company specializes in the manufacturing of advanced geophysical equipment, including a wide range of instruments such as borehole cameras, water level meters, DC resistivity meters, magnetic equipment, and seismic equipment.
2. What is the maximum depth capability of your borehole camera?
Our borehole camera is designed to operate effectively at depths ranging from 100 meters to 1000 meters, providing high-quality imaging and visualization of the borehole wall.
3. What is the diameter of your borehole camera?
Our borehole camera features a robust design with a diameter of 75mm, making it suitable for boreholes ranging from 80mm to 300mm in diameter.
4. What is the operational temperature range of your borehole camera?
The operational temperature range of our borehole camera extends from -10 to 60 degrees Celsius, enabling reliable performance in a wide range of environmental conditions.
5. Do you provide customized borehole camera solutions?
Absolutely. We offer tailored solutions to meet specific customer requirements. Our expertise allows us to develop customized borehole cameras capable of reaching depths up to 2000 meters or withstand high-temperature environments, among other specialized configurations. Get in touch with our team to discuss your unique needs and explore the possibilities.
