Downhoe Seismic Geophone Sensor Three Components 3C Geophone

Name: Downhoe Seismic Geophone Sensor Three Components 3C Geophone
Brand: Gold
Price: 1 USD

Quality Downhoe Seismic Geophone Sensor Three Components 3C Geophone wholesale

Brand Name : Gold

Model Number : GDJ

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Set/Sets per Week

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : 3C Downhoe Geophone

Usage : borehole seismic survey

Power : Electronic

Temperature Range : 25~55℃

Waterproof Range : 10m

Compatible : Highly and compatible with international

OEM/ODM : Acceptable

Accessories : divisible sale acceptable

Frequency : 38hz

Contact Now

Three Components Geophone 3C Downhoe Geophone

Downhole geophone is a type of geophone that is designed to be used in boreholes or wells for seismic surveys. Geophones are instruments that detect seismic waves or vibrations in the ground and convert them into electrical signals that can be analyzed to study the structure and properties of the subsurface.

Downhole geophones are typically installed in a wellbore by lowering them on a cable or a wireline. They are used to obtain detailed information about the subsurface geology, including the depth and thickness of rock layers, the presence of faults, fractures, and other geological structures, and the properties of the rock, such as its density, porosity, and elasticity.

Downhole geophones are commonly used in the oil and gas industry to help locate and characterize hydrocarbon reserves. They are also used in geological and geotechnical investigations, mining exploration, and in the study of earthquakes and other natural hazards.

Technical Specification

Model	DJ	JG	JF
/	Electromagnetic borehole geophone series	Piston type borehole geohphone series	Non-adjacent borehole geohphone series
Frequency (Hz)	38hz	38hz	38hz
Working Mini Diameter (mm)	Φ70-φ120	Φ50-φ110	Φ50
Working Temperature	25~55	25~55	25~55
Diameter(mm)	φ55	φ50	φ45
Height (mm)	465	500	300
Weight (kg)	60m-10kg, 120m-14kg	60m-12kg,120m-17kg	60m-60kg,120m-10kg

Product Image

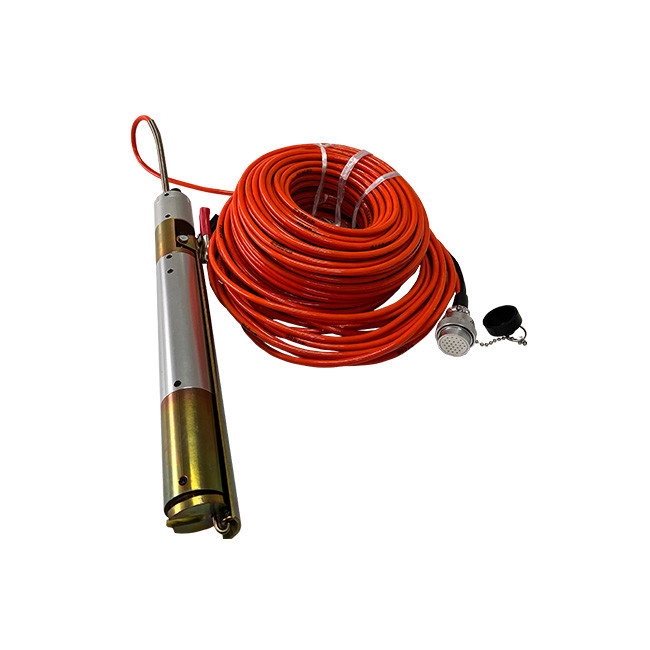

Downhoe Seismic Geophone Sensor Three Components 3C Geophone
