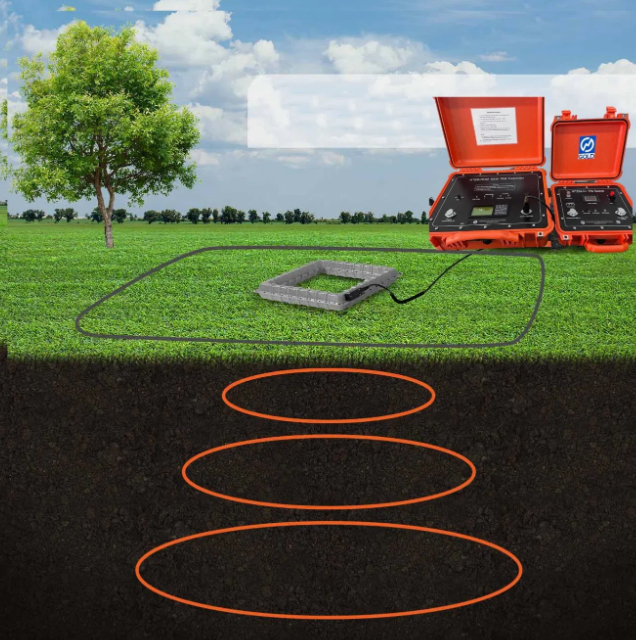

Product Description of Underground Water Finder Transient Electromagnetic Equipment Resistivity Imaging System:

The product is a cutting-edge geophysical exploration tool designed for deep geological surveys. Combining high-power transmission, rapid shutdown, and exceptional anti-interference capabilities, this system is ideal for mineral, oil, gas, and groundwater exploration. Its advanced synchronization methods, including GPS and quartz clock, ensure precise and reliable data collection even in challenging environments.

Key Features of Underground Water Finder Transient Electromagnetic Equipment Resistivity Imaging System:

Parameter of Underground Water Finder Transient Electromagnetic Equipment Resistivity Imaging System:

Receiver

• High Power Output: Delivers up to 60A current for deep exploration.

• Advanced Synchronization: GPS and quartz clock ensure accurate timing.

• Multi-Channel Operation: Supports up to 3 measurement channels for efficient surveys.

• Wireless Control: Bluetooth-enabled handheld device allows remote operation up to 10 meters.

• Robust Design: Sealed instrument casing ensures durability in harsh conditions.

• Number of channels	1 (expandable to 3)
  Preamplifier gain	8, 32 times
  Main amplifier gain	1, 2, 4, 8, 16, 32, 64, 128 times
  Passband	0~50kHz (linear phase filter), full pass is 0~400kHz
  Power frequency suppression	≥80dB
  A/D bit number	16 bits
  Minimum sampling interval	1μs
  Crystal oscillator total frequency difference	≤5×10-9
  Number of measurement channels	≤128 channels
  Number of superpositions	1～9999 times
  Synchronization mode	① Cable synchronization ②GPS+quartz clock synchronization
  Power	built-in 12V rechargeable battery (can also be connected to an external 12V battery), working time ≥10 hours
  PDA	Windows Mobile 6.0 system, 320×240 true color, 64MBFlash ROM / 64MB SDRAM, 1GB CF card, can store data of no less than 100,000 measurement points, Bluetooth, infrared, serial port.
  Volume	340×295×152mm3
  Weight	5.3kg
  Operating temperature	-10℃～+50℃

Applications of Underground Water Finder Transient Electromagnetic Equipment Resistivity Imaging System :

• Mineral and oil exploration

• Groundwater and aquifer mapping

• Geothermal and environmental studies
